Set of equipment to produce articles according "SISTROM" technology

The scientific and industrial enterprise "Sistrom" has been successfully developing and supplying new technologies and equipment to the market for more than 15 years allowing to turn ordinary cement and sand into facing materials of new generation with surface structure and strength of marble. "Marble from concrete" is a reality became possible due to the Sistrom technology.

The machine building enterprise "Stroymechanika" having a great experience in the production of the construction equipment, manufactures equipment to make and form mix applied to produce articles according to SISTROM technology..

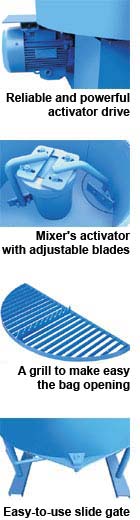

Concrete mixer of "SCAUT" series

The concrete mixers of "SCAUT" series are well recommended to prepare mix applied at the production of products as provided by SISTROM technology. The enterprise "Stroymechanika" offers three models of concrete: SCAUT 80, SCAUT 200 and SCAUT 300. The machines are notable for tank volume, blades quantity, drive power.

Concrete mixer SCAUT are batch concrete machines intended to make concrete mixes and construction mortars with aggregate size up to 40 mm.

Concrete mixer of "SCAUT" series are ideally suit to prepare dry and plastic mixes with large quantity of agents (pigments) including agents applied at the production of production by SISTROM technology.

Concrete mixers "SCAUT" are machines with fixed tank and rotary activator. The paddle-wheel rotary activator has possibility to adjust working clearance of paddles and overhang of blades, provides qualitative mixing of mix components.

The special characteristics of concrete mixers of "SCAUT" series are:

• well thought-out, and easy-to-use design of the unit;
• the activator drive in the bottom part of the activator;
• well-disposed bottom gate;
• optimal height up to bottom gate level;
• loading grill with knife to open cement bag in the standard packaging arrangement;
• electric chamber with embedded control board installed on the concrete mixer body.

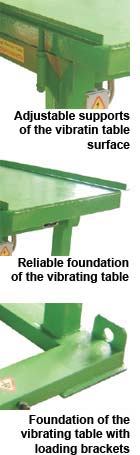

Vibrating table VIBROID 1000

A vibrating table VIBROID 1000 has been well approved in order to form ready mix in SISTROM molds.

Vibrating table "VIBROID" are notable for:

• reliable rigid foundation;
• reinforced vibrating surface of the table;
• screw clamps of load-bearing springs;
• adjustable limiters, fixed on eth foundation of the table.

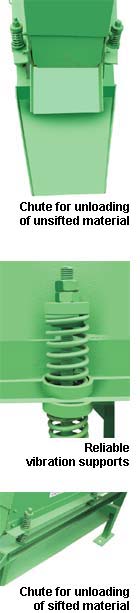

VIBRATING screen VS 3S

The good addition to the above-listed units will be the well-approved vibrating screen VS 3S, necessary to screen sand at the production of production according to SISTROM technology. The special characteristic of the vibrating careen VS 3S is the possibility to unload material on two sides that increase considerably the usability and operating speed on the vibrating screen. The guide chute for coarse particles allows to clean quickly the working surface of the screen from unscreened particles. The changeable screen angle allows to make the screening of dry components more qualitative.

The equipment, offered by the machine building enterprise "Stroymechanika" for the production of items as proved by SISTROM technology has been well approved on the production sites in many regions of Russia Federation, CIS countries and other foreign countries.

Qualitative articles as provided by SISTROM technology are made on qualitative and reliable equipment of "Stroymechanika" company.
