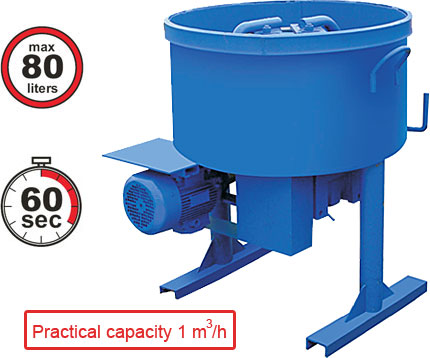

Forced action concrete mixer SCAUT 80 M
Improved model

 Video of the equipment in operation    Download video

Forced action concrete mixers of series "SCAUT" are batch concrete machines intended to prepare concrete mixes and building mortars with aggregate size up 40 mm. The concrete mixers of series "SCAUT" suit ideally to prepare hard moulding mixes with low water content and high admixtures content (pigments).

The recommended field of application:

Preparation of concrete mixes and building mortars as in shops as on open sites. Preparation of hard concrete mixes for masonry units (GOST 6133-99), paving elements. Preparation of plastic mixes, used in the production of paving tile, kerbs, articles of small architectural forms.

The concrete mixers of hard mixes of series "SCAUT" are machines with fixed bowl and rotor activator. The blade rotor activator with possibility to adjust working clearance of blades and blades extension length provides the qualitative mixing of mix components without unmixed areas.

Technical characteristics

The distinguished features of concrete mixers of series "SCAUT":

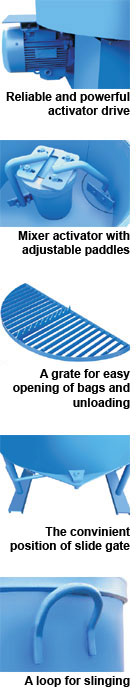

• The hard-alloy facings of the working mixer's blades extend service period of the equipment working with abrasive mix components.
• The belt drive of worn gear box used in the mixers of series "SCAUT", are reliable electric motor protection and drive part from overloading.
• Activator drive set up in the bottom part of the mixer make considerably easier the loading and maintenance of the plant.
• The presence of convenient bottom segmented shutter used on mixers of series "SCAUT" helps to unload the machine as fully and quickly as possible.
• The movable covers of mixer's bowl preventing the mix spillage during the mixing process make the servicing of the plant convenient and safety.
• A loading grate with knife to open cement bags.
• An electric box with control panel of the plant in a standard kitting.
• The increased height up to the bottom segmented shutter make easier the unloading from the plant.
• The concrete mixers of series "SCAUT" are operated as in closed shops as immediately on the open building sites. The small mass and compact overall dimensions of concrete mixer allow to operate with it close to the place of concrete and building mortar application.
• The concrete mixers of hard mixes of series "SCAUT" are supplied ready for operation to the customer: filled with oil and set clearances of working blades.

Concrete mixer of series "SCAUT" - is always ready!
